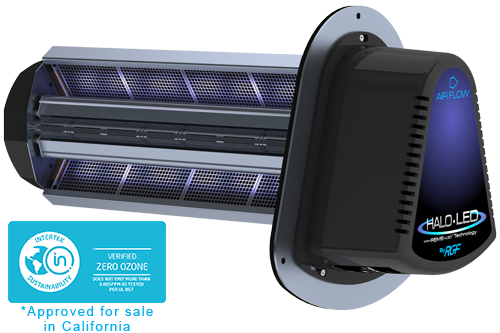

HALO-LED™ Whole Home In-Duct Air Purifier
The HALO-LED™ is the industry’s first LED in-duct, whole home and building air purification system that is both mercury free and zero ozone compliant. The HALO-LED™ proactively treats every cubic inch of air conditioned space, reducing airborne and surface contaminants and pollutants through bi-polar ionization and revolutionary, patent pending, REME-LED™ technology.
Scroll
| ITEM# | HVAC BLOWER SIZE | REPLACEMENT CELL | ELECTRICAL | DIMENSIONS | |
|---|---|---|---|---|---|
| REME-LED | 250 to 6,500 CFM | PHIC-REME-LED | 24 VAC/DC | 11" probe / 6.5" x 7.5" plate |
- Details

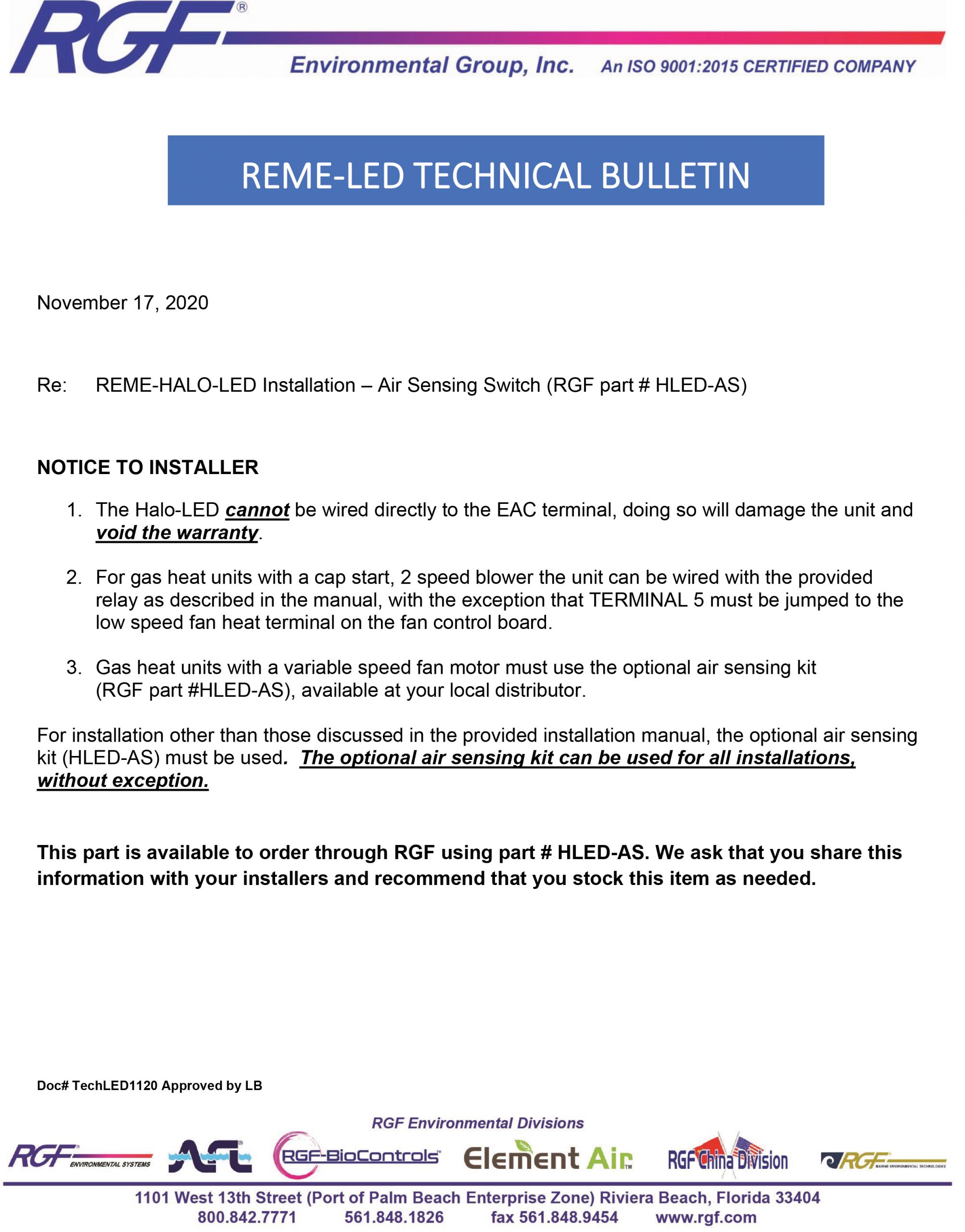

- Technical Bulletin
- Features & Benefits
- Applications
- Technical Specs
- Videos
• New revolutionary REME-LED™ technology, long life and environmentally friendly
• New hybrid hydrophilic catalyst incorporating the industry’s first washable ceramic catalyst
• Includes automatic self-cleaning ionizers with carbon fiber brushes to reduce particulates (Patent Pending)
• Unlimited cycling capability designed to turn on/off with the HVAC system
• 24 VAC/DC input (24 VAC transformer included)
• Long-life replaceable LED cell module with 2.5x longer life than current mercury vapor UV lamp technologies
• Industry’s first washable catalyst for high load environments (ie. cigar bars, smoking rooms)
• Reduces airborne and surface microbials, bacteria, viruses, and mold
• Reduction of smoke, odors, VOCs, allergens, dust, and particulate
• Mercury and ozone free
• Seven-year limited warranty
• Residential applications
• Commercial applications
Scroll| Model # | HALO-LED |
|---|---|
| Technology | REME-LED™ |
| Recommended Cell Replacement | 4.5 years |
| Replacement Cell Part # | PHIC-REME-LED |
| Power Supply | 120/208/240 VAC 50/60 Hz |
| Volts | 24 VAC/DC |
| Amps | 0.7 A |
| Watts | 17 W |
| Tonnage | 2.5 – 16.25 |
| CFM’s | 250 – 6,500 |
| Installation | In Duct |
| Material | Aluminum / polymers |
| Dimensions | 11″ probe / 6.5″ x 7.5″ plate |
| Ship Weight | 6 lbs. |
| Warranty | 7 years ballast / 4 years led cell (U.S. only) |
| Hydro-Peroxides | <.02 PPM (Ozone free) |
Certifications
Conforms to: UL 1598:2008 (3rd Edition)
CAN/CSA C22.2 No.250.0:2008
EN 60335-2-65/A1:2008
